1.All models of MTRF series

MTRF-245   MTRF-250   MTRF-290   MTRF-295   MTRF-300   MTRF-350  MTRF-395  MTRF-400  MTRF-450

2.Size of Discharge Bore

245(9.85″) 、250(9.85″)、290(11.8″)、295(11.8″)、300(11.8″)、350(13.8″)、395（15.7″） 400(15.7″) 、450(18″) Or in customer’s indication range

3.Differential pressure scope

9.8—98kPa

4.Air capacity scope

71.6—267 m3/min

5.Power of the motor

30—355kW

Necessary standard accessories(common type)

Tuyere take over;entrance&exiting silencer(with air filter);flexible connector; check valve; foundation bolt; deflating valve;pressure gauge; base;gear oil

Necessary standard accessories(nickel plating type)

entrance&exiting metal bellows; foundation bolt; base

6.Main Material: Cast Iron

7.Type: Twin-lobe roots blower

8. Lead Time: 7-30 days after receiving 100% payment

9. Payment Term: 100%TT (50% TT advance payment against signed contract; 50% Balance payment before delivery to loading port)

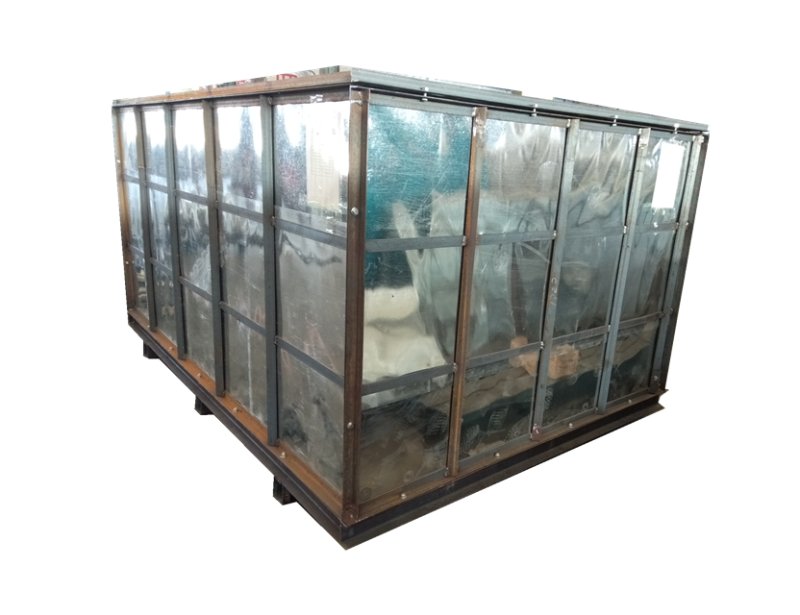

10. Packing: Standard Exported Iron Box Package

11. Color: Grey, Blue, or Customized.

12. Certificates: CE&ISO9001&ISO14001&OHSAS18001

13.Shangu is Madrid International Trademark

14.Configuration:

15. Advantages:

1)Standard specification for each kind of roots blower, easy to choose

2)Big volume, high efficiency.

3)Imported screw noise shielding structure, lower noise than the same production

4)Compact structure, small volume, lightweight with graceful appearance

5)Oil-free, no oil pollution for the transportation medium

6)Import bearing, gear, and other spare part ensure the long life of the blower

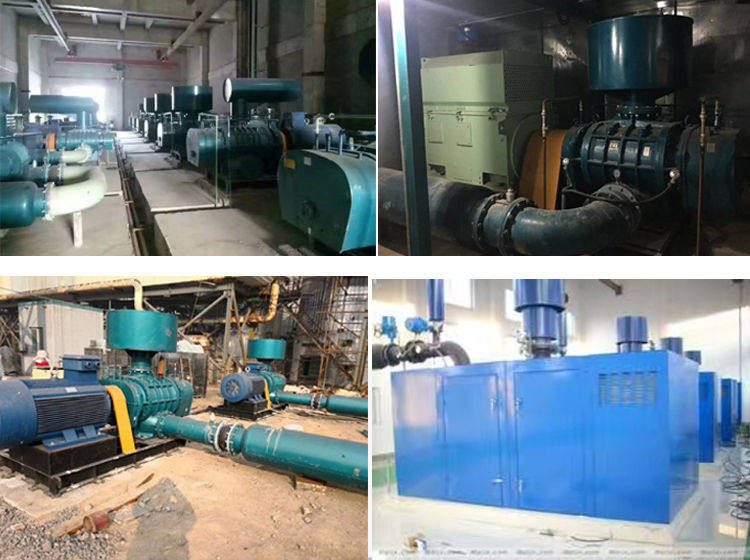

Application：coal gas pressure transmission roots blower, lime kiln project roots blower, rotary kiln roots blower, pneumatic conveying roots blower, ash silo gasification roots blower, Maerz Kiln roots blower, Meltblown machine roots blower, Meltblown nonwoven fabric machine roots blower, cement roots blower, FGD roots blower, Ash handling system roots blower, etc.
